Small, lightweight and powerful, the FPV Monitor allows you to view two channels simultaneously for serious mission control. With sharp contrasts and a LED backlight, this 7" monitor is ideal for capturing real-time mission images in the field, even on the brightest of days. The 5.8 GHz 32-channel wireless video receiver won’t display a "blue screen" when the signal gets weak so you can fly farther without losing your first-person view.

How It Works

• Small, lightweight, durable.
• Built-in dual receiver.
• Dual buffered AV outputs.
• Can receive two different channels at the same time.
• Not affected by 2.4 GHz R/C Radios.
• AV Receiver with diversity inputs.

Technologies

• Working voltage: DV 7-12 V (center positive) or 11.1 V Li-battery.
• Built-in 5.8 GHz dual diversity receiver automatically for best reception .
• Built-in 2CH 5.8 GHz AV output and 1-channel AV input .
• Working frequencies:       - CH1: 5705 MHz       - CH2: 5685 MHz       - CH3: 5665 MHz       - CH4: 5645 MHz       - CH5: 5885 MHz       - CH6: 5905 MHz       - CH7: 5925 MHz       - CH8: 5945 MHz.

Design Details

• Screen Size: 7".
• Screen Type: TFT LCD Screen/long life, LED backlight.
• Resolution: 800x480 .
• Brightness: 450 cd/m2 .
• Contrast: 500:1.
• View angle: 140/120 degree.
• Power consumption: < 8 w.
• Size: 180mm x 120 mm x 23 mm.
• Multilanguage menu support.
• Working temperature: 14°F to 149°F.

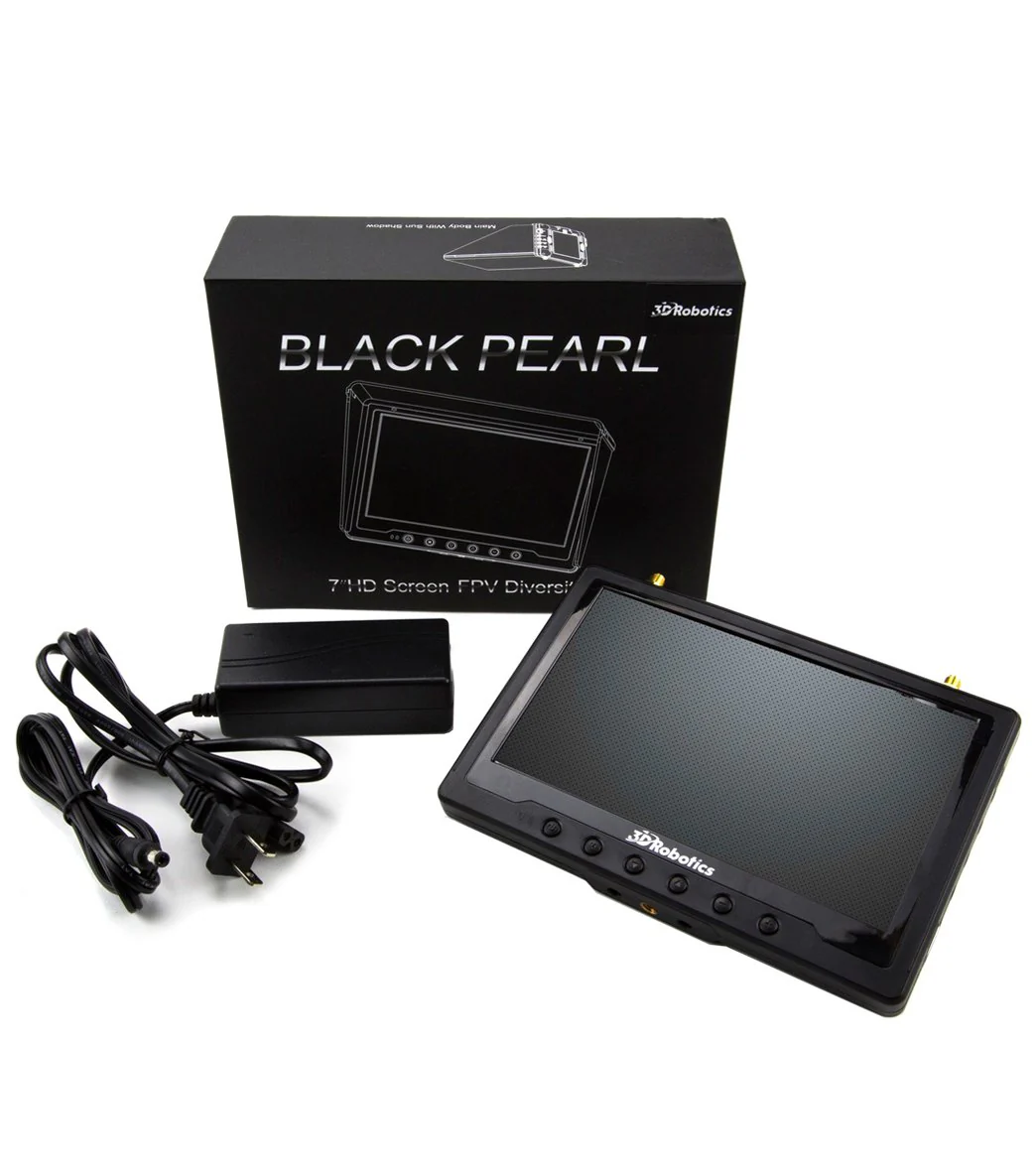

What’s Included

• One FPV Monitor.
• One charger.
• One sun shade.
